VALVE MACHINING AND TESTING TECHNOLOGY

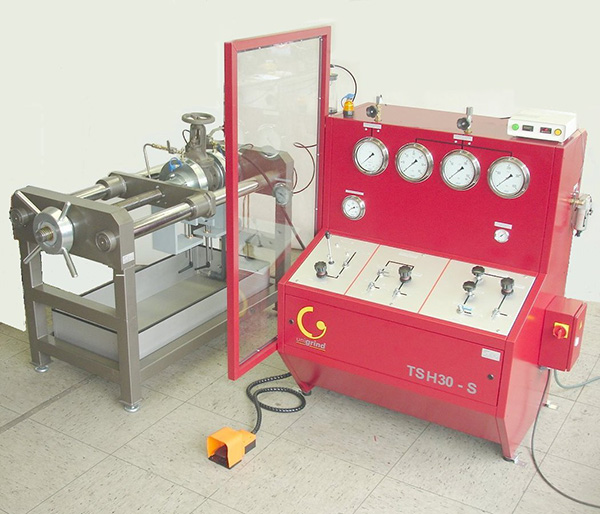

unigrind TSH S

Test unit for testing Shut-off valves and control valves.

Horizontal hydraulic clamping system are availabel with:
18, 30, 55, 85, 105 and 150 tons clamping force.

Working range: DN 10 – 800 mm (3/8” – 32”)

Test types:

• Body Test
• Leakage test of spindle glands
• Leak test of valve seat

Test media:

• Water
• Compressed air
• Nitrogen

The valves are clamped horizontal between the two testing tables.

Optional features:
Data acquisition system
Test and control system for pneumatic actuator
Digital bubble counter
Other features on request

unigrind TSH V-S

Test unit for testing Shut-off valves and control valves.

The hydraulic clamping device, 90° rotatable, enables valve testing in horizontal, vertical or inclined position.

Clamping system are availabel with:
30, 55, 85 tons clamping force.

Working range: DN 10 – 500 mm (3/8” – 20”)

Test types:

• Body Test
• Leakage test of spindle glands
• Leak test of valve seat

Test media:

• Water
• Compressed air
• Nitrogen

The valves are clamped between the two testing tables.

Optional features:
Data acquisition system
Test and control system for pneumatic actuator
Other features on request
